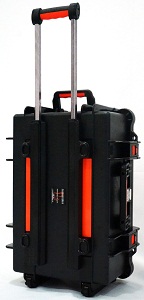

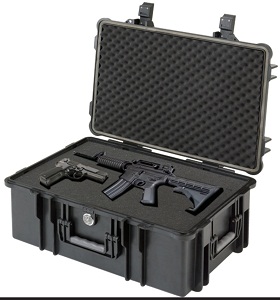

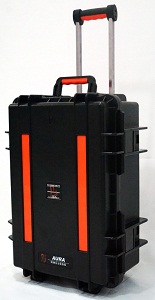

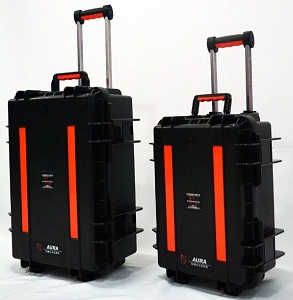

AI-5-3316F Waterproof Plastic Extendable Rod hard case

AI-5-3316F Waterproof Plastic Extendable hard case

1、Model No. and parameters

Model No.:

AI-5-3316F Waterproof Plastic Extendable hard case

External Dim.(mm):

552(L)×400(W)×236(H)

Net weight:

5.2kg

Capacity:

35L

Material:

Engineer Plastic

Internal Dim.(mm):

500(L)×330(W)×【160(case depth)+56(lid depth)】

Type:

Pull Rod

Place of Origin:

Guangdong China

Waterproof:

IP67

Hardness:

Medium

Brand

AURA

Package size(mm):

575(L)×405(W)×265(H)

Gross weight:

6.2kg

Applications:

Police,Fire/Emergency,Army,Outdoor Explorer,Scientific Researcher,Field Photographer

Suitable for:

Precision Instruments,Cameras/camcorders,Weapon,Rescue Equipment etc

2、Product Illustration



No.

Item

Qty

Material

Color

Remarks

1

Lid

1

High-strength composite resin

Black

texture

2

Case

1

High-strength composite resin

Plating surface

texture

3

Decoration sheet

2

High-strength composite resin

Black

Smoonth

4

Logo

1







5

Bracket latch

2

High-strength composite resin

Black

Texture

6

Main handle

1

High-strength composite resin

Black

Texture

7

Hygrometer(Optional)

2

High-strength composite resin

Plating surface

Range:

0~100%Rh,Toerlance:

±7%Rh

8

Purge Valve

1

High-strength composite resin

Black

AP145+3M

9

Side Handle(Optional)

1

High-strength composite resin

Black

Optional

10

Lever Handle

1

High-strength composite resin

Black+Orange

Optional

11

Rod

2

Aluminium-Alloy

Plating surface

Optional

12

Rod plate

2

High-strength composite resin

Black

Optional

13

Wheels’ accessories

2

High-strength composite resin

Black

Easier to replace



1、Dimension and Weight


External Dim.:400(L)×260 (W) ×570(H) (mm)

Extendable Rod:400(L)×260(W)×940(H)(mm)

Net Weight: 5.2kg

Gross Weight: 6.2kg



4、Performance Characteristics

Features

Technical requirements

1

Shock Resistance/Crush-proof in 5m free fall experiment

2

Water Resistance/ IP67 Waterproof 1m deep in water after 30 minutes

3

Upper lid opens to 97+/-3 degree , self-balanced position while the lid is open

4

Case latches hold upright position while open

5

Three different extendable rod heights for adjustment.

6

Easier to replace the fixed castors.

7

Reinforced wall design, rounded corners, and optimized interior capacity. Main body base area 19.3X12.6inch.

5、Performance test

Fixed castors continuously glided 8km for testing, the wheels unworn and reliable quality.
